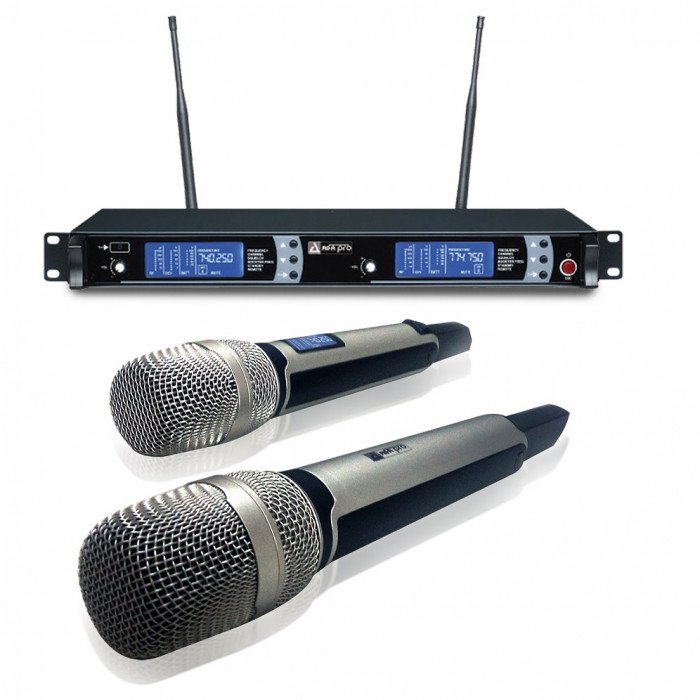

Dual UHF Wireless Microphone – ALP 900

Reliable transmission and excellent sound quality

Receiver Technical parameters
• Chassis Specifications: Standard 1U case
• Group of channels: Dual Channel, Single Channel
• Carrier frequency: 740 – 780 MHz (other bands can be customized)
• Modulation: Broadband modulation
• Oscillation mode: Phase-locked frequency synthesizer
• Sensitivity: Offset deg is equal to 25KHz, 6dB V, S/N>60dB
• Offset: +/- 45kHz
• Bandwidth: 24 MHz
• S/N ratio: >100 dB
• T.H.D: <0.5% @ 1 KHz
• Frequency response: 50Hz~18kHz = 3dB

Output voltage
-20dBV/100 ohm balanced
-4dBV/5K ohm Unbalanced

• output Socket: XLR balanced and Unbalanced socket Ø6.3
• Temperature range: -10 ºC to 55 ºC
• AC power supply: 0.5-1A, 12-15V DC

Transmitter technical parameters
• Carrier frequency: 740 – 780 MHz
• Oscillation modes: Phase-locked frequency synthesizer
• Output power: 10mW
• Frequency response: 50Hz~18KHz
• Input sound pressure: 130 db SPL
• Microphone: Dynamic
• Battery: AA x 2
• Current consumption: < 110 mA
• Weight: 400g
• Size: 270 x Ø50mm

Aifa Pro ALP900
Dual UHF Wireless Handheld Microphone
Professional Wireless Handheld Microphone
